Modular design：modular design, occupies small area,  available space in any combination

Low noise design：Streamlined fan blade, adjust in any angle

Optimal thermal design:PVC new corrugated ，high heat exchange surface rate , good surface hydrophilicity, high thermal performance,

non- water pressure water distribution system, scattere water evenly

Low spatter design: No adhesive installation, small wind resistance , small static pressure , special  corrugated  design, spatter rate betwe

-en 0.01--0-005％

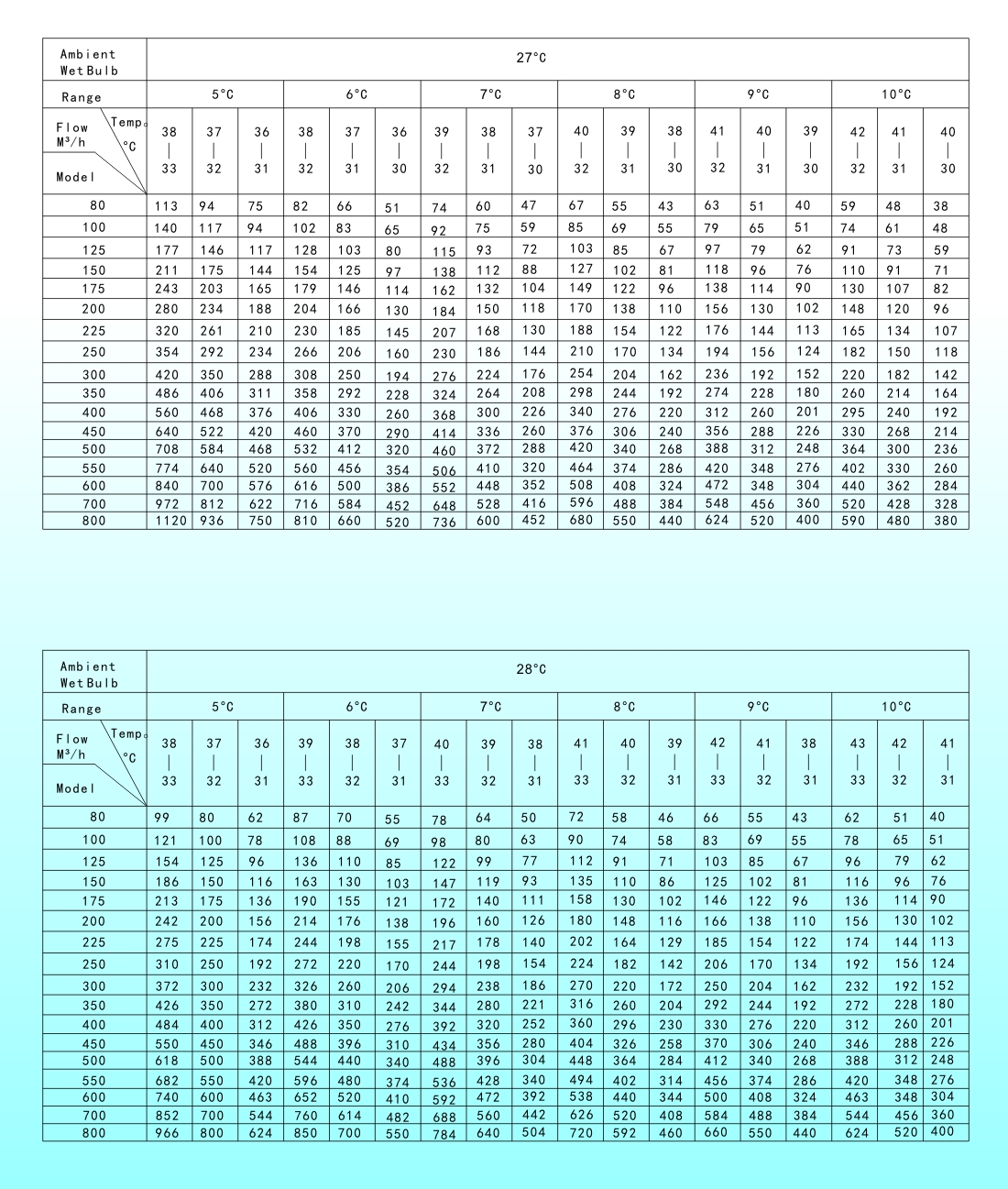

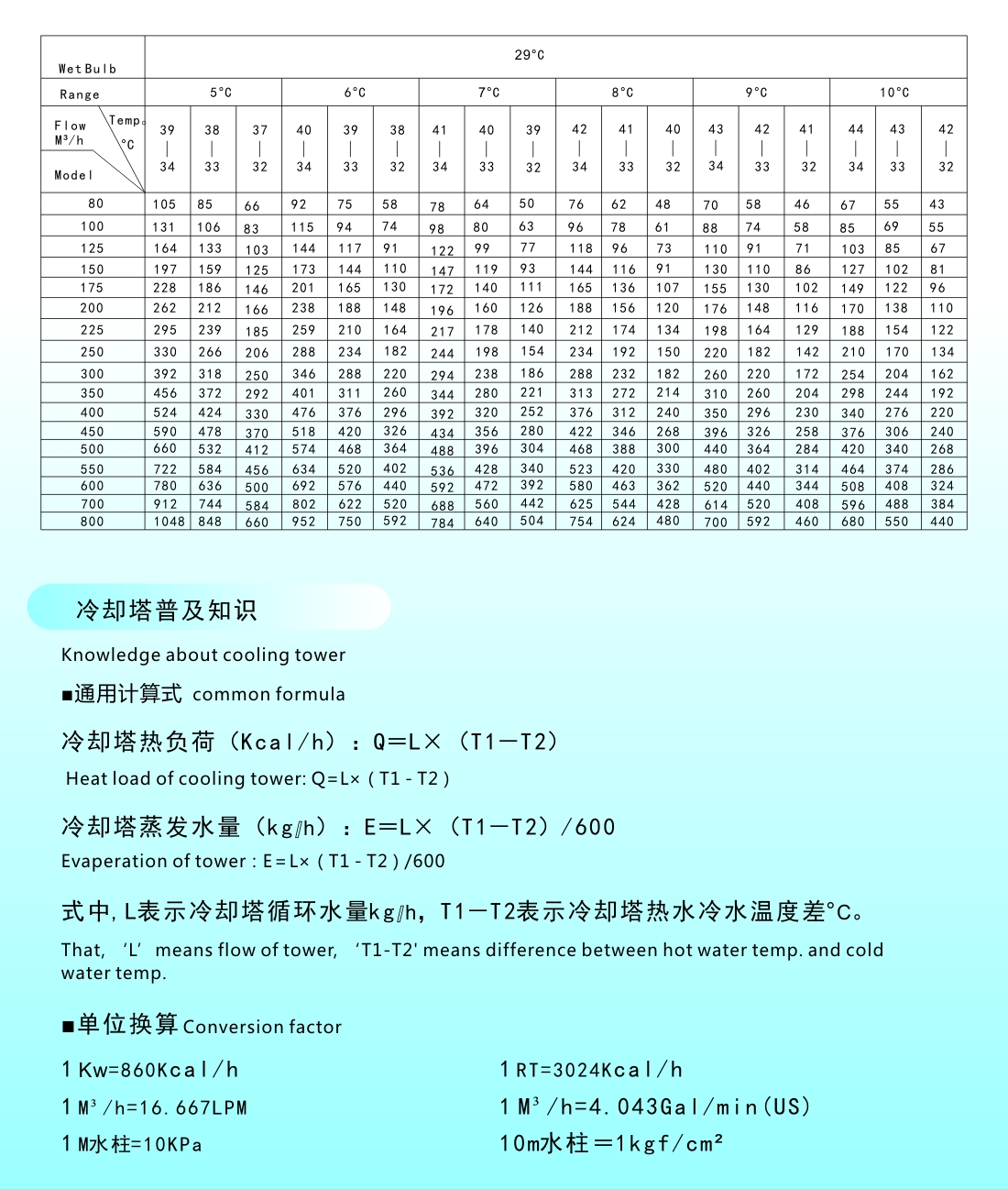

1、Cooling tower standard designed conditions:hot water temp.is 37℃,cold water  temp.is 32℃,ambient wet bulb is 28℃,location air pressure is 99.7kPa.

2、Ensure all basic levels keep in one leve,these miss not more than 5mm.Coustomers shall ensure how high the base is by himself,Ofcouse,it is 300mm at least. you can get the paper of base from our sale staff in need.
